Endstop mechanical limit switches switch RAMPS 1.4 3D printers use the module

Endstop mechanical limit switches switch RAMPS 1 4 3D printers use the module
Click to see details
Endstop mechanical limit switches switch RAMPS 1 4 3D printers use the module
Endstop mechanical limit switches switch RAMPS 1 4 3D printers use the module
Endstop mechanical limit switches switch RAMPS 1 4 3D printers use the module
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $2.33 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

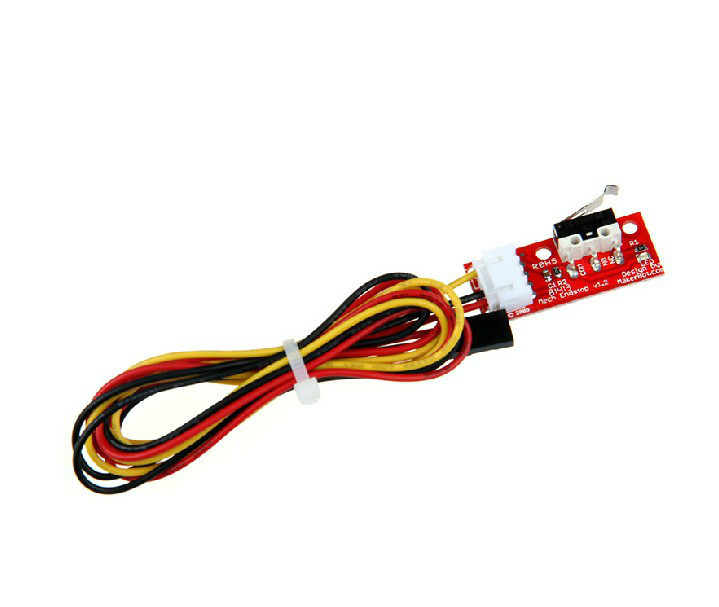

Name : Endstop mechanical limit switch touch switch touch switch 3D printer

Weight : 14g

Features Benefits :

Quality switching element .

Customized high quality connection, using 22AWG wire , copper wire inside is very thick, can withstand the current 2A , 300V voltage. The insulating layer is also very wide temperature range , up to 80 degrees . Ordinary thin copper wires can not be compared. Not easy to pull off, mating is also convenient for easy use Plug the other side to do the whole, direct plug will be able to use .

A photoelectric limit switch

Schematic

The kit includes :

1 ) a mechanical switch

Cable 2 ) of a 3-pin 70CM

Connection Description :

1 ) red line connecting VCC (ramps of+ )

2 ) Connect the black wire GND (ramps of – )

3 ) Green Line connection SIGNAL(Ramps of s)

tips: Under normal circumstances, the system must be configured at least three mechanical switches.

Pros: Easy to install, the more common styles .

Disadvantages : easy to wear and tear of mechanical parts , life is short.
